310 - automatic transmission, transaxle & fit (unit) for Nissan Vanette Serena KVC23

	Frame / Series KVC23 / C23 body W (wagon ) engine CD20ET (2000 diesel turbo ﾃﾞﾝｾｲ) drive 2WD (two-wheel drive ) Manufacture period 01.1998 - ... grade FX2 transmission AT (automatic transmission )

---

Applies for models	Manufacture period	Spec
2WD.CD20ET.AT +4WD.SR20DE.MT	01.1997 - 01.1998	T/M TO ENG.ﾌｨｯﾃｨﾝｸﾞ ﾊﾟｰﾂ
2WD.CD20ET.AT	01.1998 - ...	T/M TO ENG.ﾌｨｯﾃｨﾝｸﾞ ﾊﾟｰﾂ

Open full screen picture Up to the top

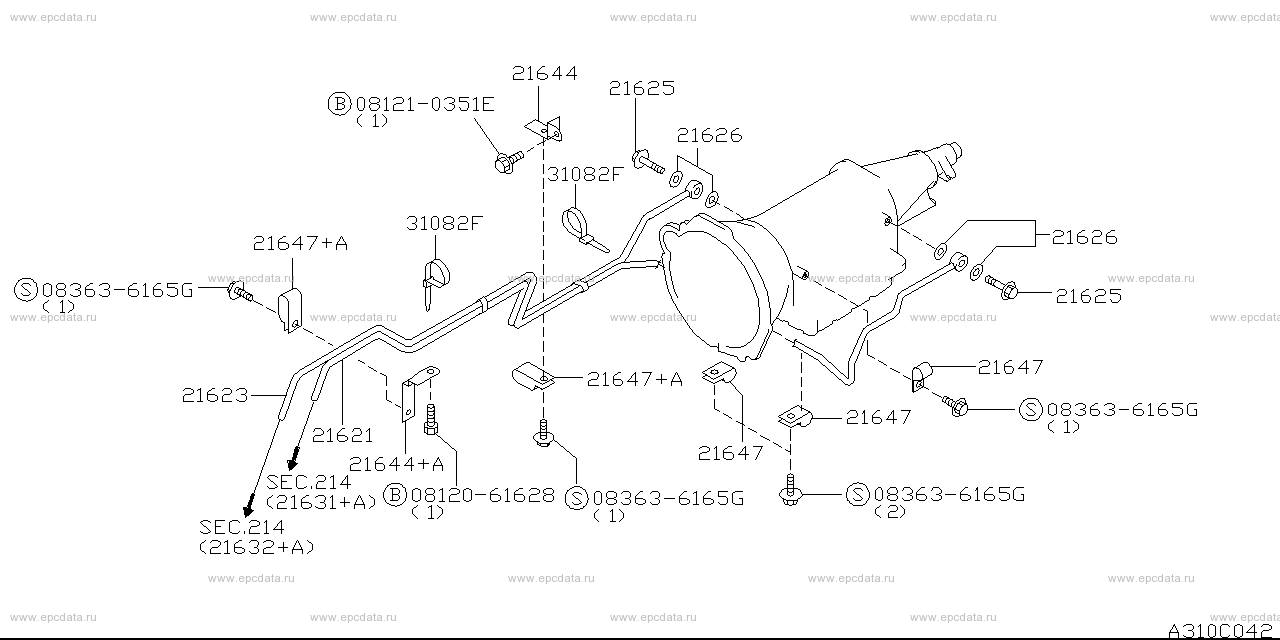

0812061628 081210351E 083636165G 21621 - tube assembly, oil cooler 21623 - tube assembly, oil cooler 21625 - bolt, connector 21626 - washer, seal 21644 - bracket, tube clamp 21644+A - bracket, tube clamp 21647 - clamp, tube 21647+A - clamp, tube 31082F - clamp

---

Applies for models	Manufacture period	Spec
2WD.CD20ET.AT +4WD.SR20DE.MT	01.1997 - 01.1998	トランスミッション アッセンブリー
2WD.CD20ET.AT	01.1998 - ...	トランスミッション アッセンブリー

Open full screen picture Up to the top

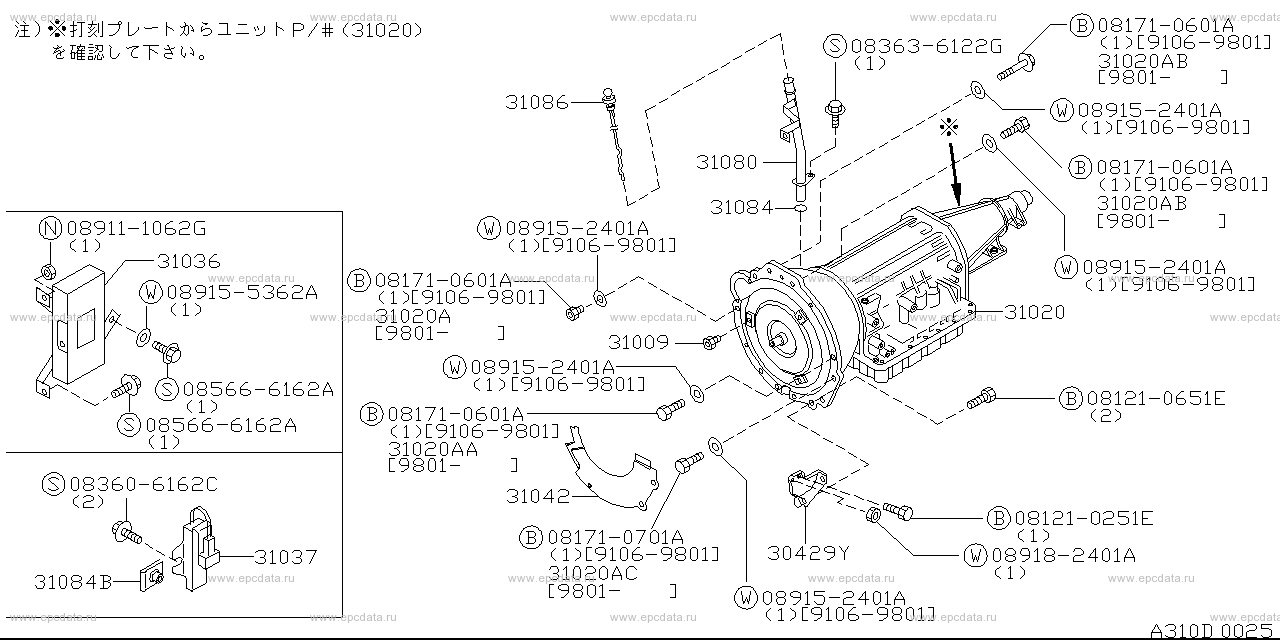

081210251E 081210651E 081710601A 081710701A 083606162C 083636122G 085666162A 089111062G 089152401A 089155362A 089182401A 30429Y - gusset, transmission to engine 31009 - bolt, self lock 31020 - transmission assembly, automatic 31020A - bolt 31020AA - bolt 31020AB - bolt 31020AC - bolt 31036 - control unit, shift,,A/T control unit 31037 - register assembly, auto transmission 31042 - cover, dust 31080 - pipe assembly, oil charging 31084 - seal,O ring 31084B - nut 31086 - gauge assembly, oil level

Vanette Serena KVC23
